Teklif Talebi Gable railing / Soffit mesh

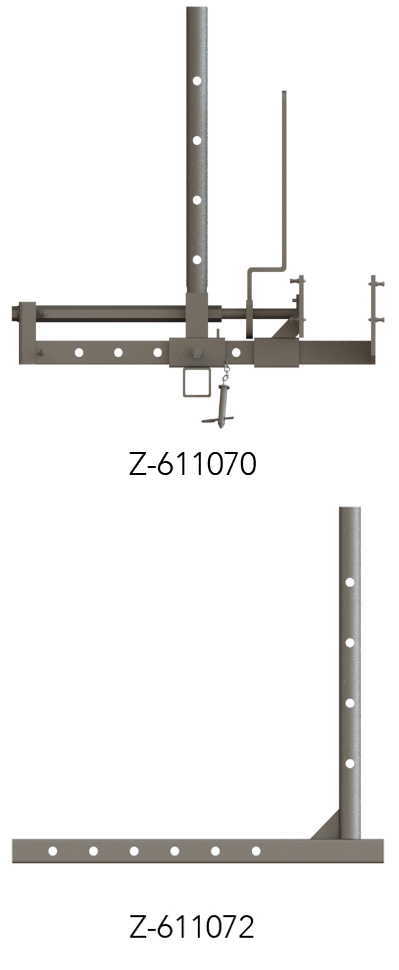

Gable railing / rafter tie

Ürün Kodu	Tanımlama	Uzunluk	Genişlik	Ağırlık	Adet
Z-611060	Rafter tie made of galvanised steel, incl. built-in assembly ratchet, Wall thickness 3 mm	60 cm	15 cm	10,00 kg
Z-611070	Rafter tie made of galvanised steel, incl. built-in assembly ratchet, Wall thickness 3 mm	70 cm	15 cm	12,00 kg
Z-611072	Post bracket for rafter tie for purlin assembly, Worldwide unique rafter tie that can also be used as a «purlin tie».	60 cm	5 cm	3,50 kg

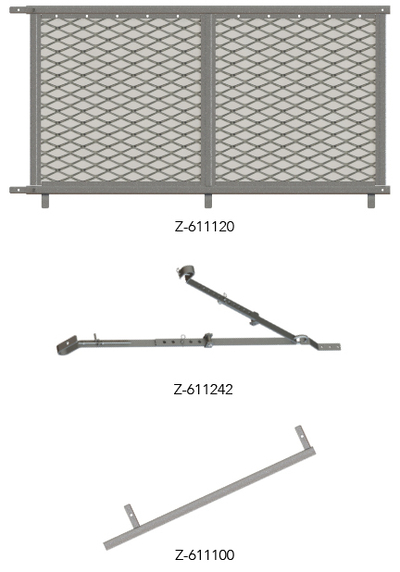

Soffit mesh

Ürün Kodu	Tanımlama	Uzunluk	Genişlik	Ağırlık	Adet
Z-611120	Aluminium soffit mesh, Refer to assembly instructions	120 cm	100 cm	8,70 kg
Z-611240	Aluminium soffit mesh, Refer to assembly instructions	240 cm	100 cm	16,10 kg
Z-611242	Complete steel bracket for soffit mesh, Adjustable	100 cm		10,20 kg
Z-611100	Connecting post for soffit mesh	123 cm		2,00 kg

Brand new solution for protection at soffit which will be based on a new integral bracket will be introduced to the market in 2023.
