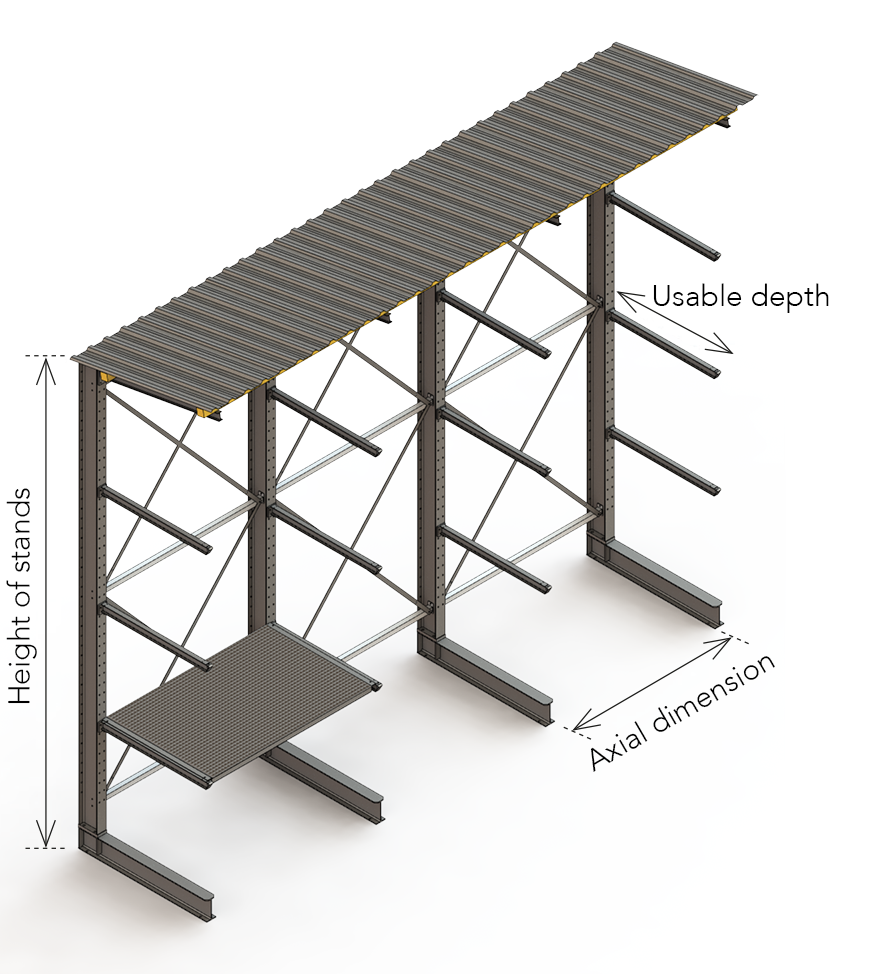

Roof cantilever beam
Slope 10 (degrees) upwards or downwards
Trapezoidal sheet
Made of galvanised steel
Cantilever beam IPE 80-240
Usable depth 0.40-2.50 m
Load-bearing capacity up to 3,000 kg
Cross-brace
Single piece/double piece
Horizontal bracing
Up to 2.50 m
Grating
Load-bearing capacity up to 1,500 kg/m2
Base, single-sided IPE 180-400
Usable depth 2.50 m
Stand IPE 180-400
Height up to 8 m
Wooden beam
